https://doi.org/10.3390/bios12121116
“Visualization of biomedical samples in their native environments at the microscopic scale is crucial for studying fundamental principles and discovering biomedical systems with complex interaction. The study of dynamic biological processes requires a microscope system with multiple modalities, high spatial/temporal resolution, large imaging ranges, versatile imaging environments and ideally in-situ manipulation capabilities. Recent development of new Atomic Force Microscopy (AFM) capabilities has made it such a powerful tool for biological and biomedical research. This review introduces novel AFM functionalities including high-speed imaging for dynamic process visualization, mechanobiology with force spectroscopy, molecular species characterization, and AFM nano-manipulation. These capabilities enable many new possibilities for novel scientific research and allow scientists to observe and explore processes at the nanoscale like never before. Selected application examples from recent studies are provided to demonstrate the effectiveness of these AFM techniques.”
“Atomic Force Microscopy (AFM), a member of the Scanning Probe Microscopy (SPM) family, is a great complementing tool to resolve the aforementioned limitations. First, AFM is a versatile tool that can operate in ambient air, high vacuum and liquid environments, which makes it an ideal imaging technique for biomedical research. Biological samples can be imaged in buffer solution by AFM, which is helpful to preserve specimens in their native states. Second, an AFM in its basic form can obtain 3D topography information [1] by scanning a cantilever probe over the sample surface. AFM typically has subnanometer out-of-plane resolution and in-plane resolution on the order of several nanometers. It can resolve DNA double helix [2] or even atomistic events at the atomic lattice step edges in the right conditions [3]. The probe-sample interactions can be of various nature and result in the deflection change of a micro-cantilever. As a result, the mechanical interaction between the probe and the sample can also be easily captured to create material property mappings. Third, AFM probes used for imaging also offer a more direct way to mechanically manipulate the sample compared to optical tweezers and electron beam based fabrication (e.g., lithography, welding, evaporation, etc.). These characteristics of AFM make it an attractive tool for biomedical applications. Scanning Tunneling Microscope (STM) is another type of SPM system using a rigid conductive tip and the tunneling current to image conductive samples with atomic resolution. It is used more often in material science research instead of biomedical research due to more stringent requirements of the sample and imaging environments. A summary of the aforementioned microscopy categories is summarized in Table 1. Notice that values provided are for typical systems while specialized implementation can significantly change the characteristics of the instrument. For example, in high-speed AFM imaging to be discussed in details later, the frame rate can be significantly increased at the cost of a smaller imaging area.”
”
2. AFM Basic Principles
A typical AFM can create 3D topography images with a range over hundreds of microns at subnanometer resolution. The out-of-plane resolution of AFM can reliable resolve single atomic layer steps of graphene, which is around 0.350.35 nm. The system vibration level and performance of the nano-positioning system is the main limiting factor of the out-of-plane resolution. The in-plane resolution of AFM is mostly limited by the probe tip radius and modes of operation with a typical value on the order of several nanometers. In specialized conditions, subnanometer resolution is possible [3], while in other cases where metallic tip coating is applied, the resolution is limited to tens of nanometers. To realize nanoscale topography imaging capabilities, a conventional AFM is primarily composed of three subsystems. They are the cantilever probe, the nano-positioning system, and controller electronics, as shown in Figure 2.

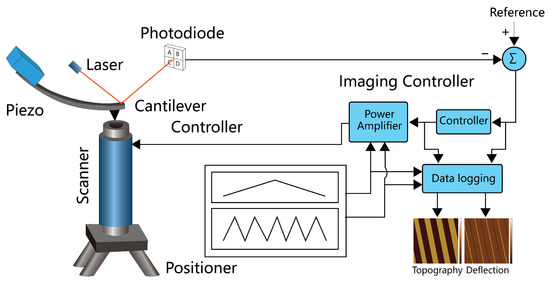

Figure 2. Principle illustration of a conventional AFM including a cantilever probe with optical beam deflection sensor and piezo-acoustic resonance excitation, a nanopositioning system, and an imaging motion controller.
2.1. Cantilever Probe
A flexible microcantilever probe with a tip, sensors and actuators is used to interact with the sample. A typical probe is composed of a base support chip, a microcantilever, and a sharp tip. Probes are typically made with silicon, silicon dioxide or silicon nitride material created through nanofabrication processes. In most cases, the cantilever deflection is measured using an optical beam deflection system to achieve sub-nanometer resolution. A laser source and a quadrature photodetector work together to measure the free end angle change of the cantilever, which is proportional to the deflection at small angles. A piezo actuator can be used to acoustically excite the resonance of the cantilever for dynamic mode operation. Going beyond conventional implementation, additional sensing methods have also been investigated including astigmatic detection, interferometry, optomechanical sensing, piezoresistivity, and piezoelectricity. Alternative actuation methods include piezoelectric, photothermal, thermomechanical, electrostatic, and electromagnetic principles. A more detailed review of these principles is available in [4].
For advanced applications, both the tip and the micro-cantilever of the AFM probe can be upgraded. For example, the tip geometry and material can be modified to image high-aspect ratio samples with sharp tip, perform nano-indentation using spherical tip, improve laser detection performance with reflective gold coating or create electrical property mapping with conductive tip. For the micro-cantilever, active elements can be embedded into the structure to realize sensing and actuation with some of the aforementioned principles such as piezoresistivity, piezoelectricity, etc. Such active probes can help to enable new AFM capabilities with details in review [5]. For biomedical applications, selected principles can be mixed and matched based on experimental needs.
2.2. Nano-Positioners
A nanopositioning system regulates the relative position between the probe tip and the sample surface. Depending on the modes of operation, the deflection or oscillation characteristics of the cantilever are regulated by controlling the relative spacing between the probe tip and the sample surface. Either the probe or the sample can be scanned to create the relative motion needed for imaging.
For practical implementation, a large-range (i.e., several millimeters) coarse XYZ positioner driven by stepper motor is used to identify area of interest on the sample and engage the probe tip with the sample. A flexure-constrained scanner driven by piezoelectric actuators creates the relative to cover the scanning motion with a range over hundreds of microns at subnaometer resolution. Depending on the application needs, scanners may be exchanged to have different resolution, range and bandwidth characteristics.
2.3. Controller Electronics
The AFM control system is crucial to ensure good imaging performance and avoid damaging fragile biological samples. Modern AFM control systems are mostly implemented on Field Programmable Gate Array (FPGA) for the main logic. Signal conditioning circuits and driver electronics developed on custom printed circuit boards are used as the analog front end to interface with sensors and actuators. In more advanced imaging modes such as amplitude or frequency modulated dynamic modes, additional signal processing modules such as lock-in amplifiers and phase-locked loops are needed. During imaging experiments, the gains of the proportional-integral-derivative controller should be tuned by the users to ensure a good tracking performance.
2.4. AFM Imaging Modes
The AFM hardware can be operated in a number of modes for imaging purpose to extract various sample information. Depending on the dynamics of probe-sample interaction, they can in general be classified into four categories including contact modes, dynamic modes, jumping modes and hybrid modes.
The contact modes category is the most straightforward to understand where the cantilever deflection signal during tip-sample interaction is directly recorded or regulated during imaging. While scanning the sample, the lateral force can be measured through probe twisting to obtain friction coefficient and surface roughness information. Using a conductive probe and a biased sample, electrical properties such as voltage, current, conductance, capacitance and resistance of the sample can be measured through modes such as Scanning Voltage Microscopy (SVM), Scanning microwave microscopy (SMM), Photoconductive/Conductive Atomic Force Microscopy (PC/CAFM), Scanning Spreading Resistance Microscopy (SSRM) and scanning capacitance microscopy (SCM). The sample temperature can also be imaged with temperature-sensitive filament located near the tip through Scanning Thermal Microscopy (SThM) [6]. As the probe scans over the sample, electrical bias can be applied to excite the piezoelectric response of the material that can be measured with the cantilever deflection, giving rise to piezoresponse force microscopy (PFM). Such mechanical response can also be triggered through photothermal processes with radiation-based heating through infrared light, which corresponds to the mode of AFM-based infrared spectroscopy (AFM-IR). In addition to force responses, the optical response of the material enhanced by the plasmon effect at the probe tip and the sample surface can be utilized for Tip-Enhanced Raman Spectroscopy (TERS).
In dynamic mode AFM, the cantilever probe resonance is excited to generate a sinusoidal cantilever deflection signal during probe-sample interaction [7]. During imaging, the amplitude, phase, or frequency of this signal can be regulated to control the interaction and create contrast maps. The term “tapping mode” is often used when the interaction force is within the repulsive region of the Lennard-Jones potential between the probe tip and the sample. For the attraction region, the term “non-contact mode” AFM is used [8]. Multiple resonance frequencies can be excited simultaneously to create material property contrast mapping with more details discussed later. To measure surface potential, Kelvin Probe Force Microscopy (KPFM) technique is developed. This mode creates a topography imaging using tapping mode first and utilize the measured topography to create a repeated scan in an “interleaved” manner to characterize the surface potential and remove contribution from the topography. To measure electrostatic or magnetic force instead of surface potential, the Electrostatic Force Microscopy (EFM) and Magnetic Force Microscopy (MFM) operating in non-contact mode can be utilized. In addition to potential measurement, the cantilever tip can be utilized to enhance the localized electromagnetic field enhancement that helps to boost spatial resolution. When combined with cantilever resonance excitation, target signal with vibration signature can be extracted for spectroscopy purpose to enable the scattering-type Scanning Near-field Optical Microscopy (s-SNOM) mode. As an example in this category, the nanoscale Fourier Transformation Infrared Spectroscopy (nano-FTIR) injects dithering feature using the cantilever oscillation into the near-field signal to be distinguished from far-field noise signal using lock-in amplifiers.
In jumping mode, the resonance of the probe is not deliberately excited. Instead, the probe and the sample are brought into intermittent contact at a frequency much lower than the first cantilever resonance frequency with the peak deflection regulated using a controller. The jumping mode has many other names that can be a bit confusing, such as off-resonance dynamic mode or peak force tapping mode [9], etc. The simplest form of jumping mode is the force volume mode where a force versus distance curve is created at each location [10]. Contact mechanics model can be fitted to the obtained data to extract material property information including the snap-to-contact motion [11]. To improve the speed of imaging, Bruker company developed the patented Peak Force Tapping mode using sinusoidal approach curves during imaging. A corresponding quantitative nanomechanical property mapping mode named PFQNM is also developed. Ringing mode is an extension of the PFT mode where the residual vibration from each probe-sample interaction cycle can also be analyzed to extract additional material property information. Considering the complex interaction between soft samples and the cantilever probe tip involving adhesion, ringing mode is very helpful for nanomechanical characterization of biological samples [12]. The cantilever in this case is mostly operated in jumping mode but the residual vibration at the resonance frequency is also analyzed for imaging purpose.
Going beyond the three main categories, a number of hybrid modes exist where the tip-sample interaction can be of various nature. These including contact resonance (c-resonance) mode, force modulation mode, AFM Infrared Spectroscopy (AFM-IR), and chemical force microscopy (CFM). Contact resonance mode can be viewed as a combination of the contact modes and dynamic modes where the resonance frequency of the cantilever is excited while maintaining contact with the sample. Taking the AFM-IR mode as a more advanced example, this technique aims to characterize the photothermal absorption of the material by combining a laser source and the AFM. AFM-IR have two primary flavors including contact-mode photo-thermal induced resonance (c-PTIR) [13] and non-contact Photo-induced Force Microscopy (PiFM) [14]. A revised version for PTIR utilizes a pulsed laser at the resonance of the cantilever as resonance enhanced PTIR, which can be operated either in contact-resonance mode [15] or tapping mode [16]. For PiFM operation, the AFM cantilever piezo resonance excitation frequency and the laser pulse frequency can either operate both at the first cantilever resonance or causing deflection oscillation at both first and second resonance in a so-called sideband bimodal detection mode, which is to some extent similar to multifrequency operation. As a result, AFM-IR can be viewed as a complex hybrid mode between contact and dynamic modes.Chemical force microscopy is another hybrid mode worth mentioning. The tip of the cantilever can be functionalized with chemically active elements. The interact between the tip and the sample can be of various nature, making it a hybrid imaging mode. For biomedical applications, similar techniques have been utilized to study interaction between cells or molecules using techniques such as single cell force spectroscopy, single molecule force spectroscopy (SMFS) and single-cell force spectroscopy (SCFS).
A summary table of selected primary AFM modes of operation is provided in Table 2. It is worth to notice that researchers have also developed other operation modes for specialized application such as the pulsed-force mode [17], induced-vibration contact detection mode [18], etc. For biomedical applications, the mechanical property and spectroscopy modes are more widely used and will be discussed in more details later in this review.
Table 2. AFM Imaging Mode Summary.
| Category | Mode Name | Modalities | Modification | Main Benefits | Main Limitations |
|---|---|---|---|---|---|
| Contact | Constant height | topography | no z control | simple control & high-speed | changing force, lateral friction |
| Constant force | topography | standard z PID | easy high-speed | lateral friction | |
| Lateral force | friction | twist detection | roughness | sample scratching | |
| PFM | piezoelectric | electrical bias | Domain identification | lateral friction | |
| SMM | impedance | network analyzer | versatile samples | lateral friction | |
| SVM | voltage | conductive path | voltage measurement | conductive probe wear | |
| PC/CAFM | current | conductive path | current measurement | conductive probe wear | |
| SSRM | resistance | conductive path | resistance measurement | sample property spreading | |
| SCM | capacitance | conductive path | capacitance measurement | ambient water meniscus trap | |
| SThM | temperature | thermal filament | temperature mapping | filament-tip offset | |
| TERS | Raman | optical parts | chemical species mapping | laser focusing overhead | |
| Dynamic | AM tapping | topography | lock-in amplifier | amplitude control | slower imaging |
| PM tapping | topography | lock-in amplifier | phase control | slower imaging | |
| FM Tapping | topography | phase-locked loop | Quality factor robustness | frequency instability | |
| Non-contact | topography | lock-in amplifier | minimal sample damage | ambient water meniscus trap | |
| Multifrequency | nanomechanics | lock-in amplifier | stiffness, damping, etc. | available cantilever resonance | |
| KPFM | surface potential | conductive path | chemical potential mapping | slow operation | |
| EFM | electrostatic | conductive path | electrostatic force | ambient water meniscus trap | |
| MFM | magnetic | magnetized tip | magnetic force | stray magnetic field effect | |
| s-SNOM | spectroscopy | optical parts | chemical species spectroscopy | light path access | |
| Jumping | Force volume | nanomechanics | algorithm | full indentation curve | slower imaging |
| Peak force | topography | algorithm | easy experiment setup | proprietary technology | |
| PFQNM | nanomechanics | algorithm | easy quantitative mechanics | proprietary technology | |
| Ringing | nanomechanics | algorithm | stiffness, adhesion, etc. | proprietary technology | |
| Hybrid | C-resonance | nanomechanics | algorithm | stiffness, damping, etc. | sample scratching |
| AFM-IR | photothermal | light source | spectroscopy contrast | absorption rate | |
| CFM | chemical forces | probe tip functionalization | chemical species interaction | tip/sample preparation |
3. AFM Biomedical Imaging Considerations
Selecting the suitable AFM modes of operation is important to ensure good imaging performance. As biomedical samples are typically soft and easily ruptured, the basic AFM contact mode imaging can deform the sample with the friction force between the probe tip and the sample during scanning. This is, in general, a more significant problem with soft biomedical samples since the sample can be damaged easily, causing severe imaging distortions. The intermittent contact between the probe tip and the sample, using tapping mode or jumping mode, is preferred for such applications.
Controlling the imaging environment properly is another important consideration to maintain biomedical sample viability. In most AFM experiments, buffered solution is used as a native environment for the samples. A fluid cell with liquid circulation can be used as the sample chamber that encloses the cantilever probe, the sample, and fluid. For more delicate samples, fluid circulation, temperature control, and carbon dioxide concentration regulation functionalities may also be included. The alignment of optical beam deflection can be more complicated even in transparent liquid due to the change of refraction index in the medium. For opaque liquid environments, a tuning-fork based AFM can conduct imaging without the transparency requirement but have a relatively high stiffness that is undesirable for biological samples [19]. For reduced stiffness, coated AFM probes with embedded active components such as a piezoresistive deflection sensor and a electrothermal actuator have been developed for imaging purposes [20].
The proper cantilever probe should be selected based on the imaging mode and operation environment. The key parameters to look for include the cantilever stiffness, first resonance frequency, tip geometry, probe, material and reflective coating material. AFM probe vendors often have recommendations for specific experiments.
For biomedical applications, optical microscope view of the sample often plays an important role as it helps to identify the area of interest. For advanced applications, fluorescence microscopy and confocal microscopy can be combined with AFM for correlative microscopy that relates images captured by both instruments. It is worth to note that a probe scan configuration is often used for AFM in this case to better match with the optical images.
In the following sections, the review is conducted for four advanced capabilities going beyond topography imaging in liquid, which are important in biomedical research. As illustrated in Figure 3, all four AFM capabilities have representative applications in the biomedical field.

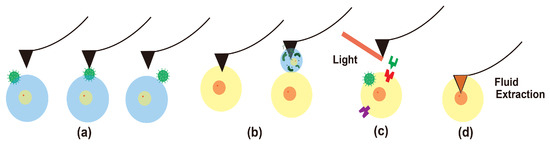

Figure 3. Advanced imaging capability illustration: (a) high-speed imaging to track virus movement on cells, (b) mechanobiology with viscoelastic property mapping and single-cell force spectroscopy, (c) chemical species characterization using near-field optics with AFM, and (d) AFM biomedical sample manipulation for fluid extraction from a cell.
4. High-Speed AFM
Improving AFM imaging speed has been a long-lasting research topic in the field. In principle, the AFM scanning process captures one pixel at a time using the probe-sample interaction. Conventional AFM imaging is a time-consuming process that takes several minutes to create even a single image. On the other hand, biological reactions can occur within milliseconds, which requires imaging at higher frame rates. For example, a skeletal myosin II power stroke is on the time scale of milliseconds, which requires high-speed AFM [21]. Due to this attractive capability to visualize dynamic processes, researchers started to improve the imaging speed since the 1990s [22] with application in biomedical research at the beginning of this century [23].
4.1. AFM Instrument Modification
Designing a high-speed AFM is a comprehensive engineering challenge that requires the modification of many subsystems. For the cantilever probe, nano-fabricated miniaturized cantilever probes have been developed [24,25,26]. A high resonance frequency helps the cantilever to respond more rapidly to changes of the sample topography. The first resonance frequency ω� is roughly proportional to square root of the stiffness k to mass m ratio of the cantilever as ω∝km�∝��. Since the stiffness of the cantilever should remain small to avoid damaging soft biological sample, the mass of the cantilever should be reduced. The deflection sensors for miniaturized probe also needs to be modified such as a smaller laser spot in the optical beam deflection system.
For nano-positioning systems, researchers have developed a wide range of high-bandwidth scanners to improve the imaging speed [27,28,29,30]. High-bandwidth AFM scanner design is usually application-specific to optimize specific imaging parameters such as frame rate, line speed, pixel resolution, spatial resolution, range, etc. In practice, the scanner bandwidth and resolution is usually a trade of against the range of operation and need to be adjusted correspondingly. Designing scanner with better performance to push this boundary is an active field of research with techniques such as multi-actuation [31,32].
To fully realize the potential of the nano-positioners and ensure good imaging performance, high-bandwidth amplifiers and advanced control algorithms are developed. Since piezoactuators in the scanners appear as capacitive loads in the circuit, the driving electronics also need to supply large power (high current) for proper operation. Additional error-compensating capabilities can be implemented using analog circuits to remove pizeoactuator non-linearities such as hysteresis and creep [33,34,35]. Making use of the AFM scanning trajectory characteristics, advanced digital controller can be designed to improve the imaging performance. [36,37,38].
Combining these subsystem modifications, researchers have boosted AFM imaging speed from several lines per second to thousands of lines per second (tens of frames per second like a typical video) [39,40]. High-speed imaging capability allows observation of dynamic changes, which is particularly helpful for visualizing biological sample responses to external excitation by scanning over a small area (hundreds of nanometers) at tens of frames per second using HSAFM. Incorporation of HSAFM capabilities into commercial systems (e.g., JPK NanoWizard) has also made it more accessible to researchers for real-time visualization. It is worth noting that another form of high-throughput AFM can also achieve high linear scan speed with multiple probes for a large range (hundreds of microns) at a lower frame rate [41], which is suitable for inspection of static samples with a large macroscopic area over several centimeters (e.g., semiconductor wafers) instead of dynamic biomedical samples.
4.2. HSAFM Biomedical Applications
High-speed AFM imaging has enabled a variety of studies in biomedical research, especially for dynamic reactions of specimens to external stimuli. Researchers can now see the movement of DNA strands in real-time as it evolves. This is a lot more helpful than using conventional AFMs where researchers get two static images before and after a reaction without knowing what happened in between. For example, HSAFM has been used to visualize movement of a two-step motion of the double-headed heavy meromyosin (HMM) [21], as shown in Figure 4. The video is captured with 150 nm by 75 nm range with 80 by 40 pixels at 6.7 frames per second. The frames of the HSAFM video allow direct visualization of the myosin motion nanoscale resolution.
Figure 4. HSAFM images of skeletal HMM chemomechanical cycle: the frames show a double-headed myosin fragment bound to F-actin at different states in 2 µM ATP with the red dot indicating the center of mass. Image created at 6.7 frames per second with a 30 nm scale bar. (PPS: pre-power-stroke, post-PS: post-power-stroke) (adapted from [21] with permission, copyright 2021 American Chemical Society).
More examples of HSAFM studies in biomedical research have demonstrated the usefulness of this capability in recent years. In fundamental biological studies, HSAFM has been utilized to study cell membrane dynamics transport [42,43,44] or defects [45], DNA self-assembly [46] or damage clustering [47], RNA structure with motion [48], and the PIEZO1 mechanosensitive channel [49]. For medical applications, HSAFM has been used to study molecular dynamics of human influenza [50], avian influenza H5N1 [51], bacterial-cell interaction [52]. High-speed imaging with large scan area capability is desirable but can be very challenging, especially for soft samples. Such samples require a minimized tip-sample interaction force such that small scan areas (tens to hundreds of nanometers) are typically used in high-speed imaging. Fortunately, with a frame rate sufficiently higher than the rate of a dynamic process to be imaged, the motion of small target particles can be tracked [53]. More HSAFM imaging examples of dynamic biomolecular processes can be found in this review paper [54]. The HSAFM technique can also be combined with other techniques such as near-field fluorescence microscopy for correlative studies of biological samples [55]. As researchers get more familiarized with the HSAFM instrument, it is a promising technique to bring new understanding to the biomedical field [56].
5. Mechanobiology with AFM
Going beyond topography imaging, AFM can also be used to measure various material properties. As a microscopy technique that “touches” the sample surface with a physical probe, AFM is a powerful tool that measures the mechanical properties of a sample, including friction, stiffness, damping, adhesion, etc. These properties play important roles during microscopic biological interactions, including adherence, migration, proliferation, differentiation, etc. The development of cells and tissues can be tuned with mechanical signals [57]. Diseases can arise from abnormal mechanical property changes and living cells under diseased conditions such as inflammation can show changes in mechanical properties, which can be used for clinical diagnosis of cell conditions [58]. For example, as the cell mechanical properties are closely related to the progress of cancer disease and inflammation [59], AFM has been utilized for cancer cell identification and immunotherapy [60].
Different modes of AFM operation have been developed to characterize these mechanical properties. The emerging field of mechanobiology utilizes such mechanical properties to understand the physiology of cell activities and their response to mechanical excitation. The AFM modes to measure these mechanical properties primarily include Lateral Force Microscopy (LFM), force volume mode, contact resonance mode, multifrequency mode, ringing mode, and single-cell/molecule force spectroscopy. Unlike HSAFM, mechanical property mapping does not require significant modification of the instrument hardware. Adding an extra module that includes control algorithms and result interpretation to an existing AFM system would typically be sufficient to enable such new modes of operations.
Lateral Force Microscopy (LFM), which is also known as Friction Force Microscopy (FFM), is typically used for sample friction characterization. In principle, LFM is similar to contact mode AFM with an additional cantilever twisting angle measurement obtained from the laser spot horizontal movement on the quadrature photodiode. The lateral force acting on the tip is linearly proportional to this angle and can be related to the surface friction. LFM was used to study cells [61] and immunoglobulin (IgG) [62], even though it is not commonly used in biomedical research due to friction-induced sample damage.
The stiffness and damping parameters are considered viscoelastic properties of the sample. In its simplest form, a force-distance curve at a single location can be obtained by indenting the cantilever on the sample. The properties can be extracted through post-processing using contact mechanics models such as the Hertz model, the Johnson-Kendall-Roberts (JKR) model, the Derjaguin-Muller-Toporov (DMT) model [63], or the Maugis-Dugdale elastic contact model [64]. To create an image of sample surface properties, the force volume mode can be utilized, which basically measures multiple force curves at different locations to form a grid of hyper-pixels. Using contact mechanics models, researchers have successfully captured multiple parameters for biological samples [65] and developed algorithms for brain cancer diagnosis from force-distance curves [66]. This process can be combined with the jumping mode operation such as the Peak Force Quantitative Nanoscale Mechanical (PFQNM) mode, where a sinusoidal waveform is used for each indentation curve to improve speed [67,68,69]. The PFQNM mode has been utilized for mechanical property mapping of living cells [70]. Improving the bandwidth of this mode can also be helpful to review dynamic rate-dependent interaction as demonstrated in a high-speed cartilage rheology experiment [71]. To illustrate the mechanical property visualization capability, a multiparametric AFM image of the cytoplasmic purple-membrane surface obtained using force-distance curves and analyzed to reveal multiple parameters [72] is shown in Figure 5.

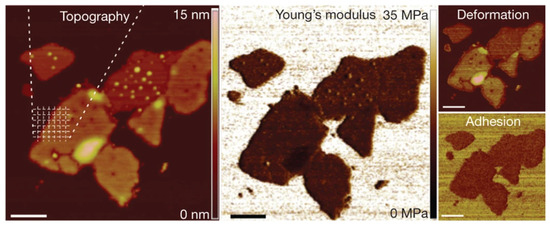

Figure 5. Mechanical property mapping of a native cytoplasmic purple membrane adsorbed on mica and imaged in a buffer solution with topography, Young’s modulus, deformation, and adhesion (adapted from [72] with permission, copyright 2013 Springer Nature).
An alternative method to measure viscoelastic properties is the contact resonance mode. Based on the conventional contact mode operation, an external oscillator excites the cantilever resonance while it remains in contact with the sample surface. The resonance frequency of the cantilever-sample system increases as the sample stiffness increases, and the system’s quality factor decreases with an increase in sample damping coefficient. The resonance characteristics can be extracted by various methods such as phase-locked loop, frequency sweep, and band excitation to solve for the mechanical properties. This mode is used less frequently on soft biological samples due to friction-induced sample damage.
The multifrequency mode uses multiple resonance frequencies to create a contrast map of viscoelastic properties [73]. The mechanical AFM cantilever has, in principle, an infinite number of eigenmodes corresponding to different resonance frequencies. Since the probe-sample interaction speed and the cantilever mode shapes are different for each resonance frequency, different contrast maps can be created at each resonance frequency. In a simplified view of a lumped parameter system of the cantilever-sample system during tip-sample interaction, imaging at different resonance frequencies helps to view the viscoelastic behavior at discrete frequency points of the spectrum. Since a lock-in amplifier can extract oscillation information at a specific frequency, several cantilever resonance frequencies can be excited simultaneously during imaging to create multiple material property maps with high contrast. Cantilever geometry optimization to control eigenmode frequency difference and specialized control algorithms have been developed to improve this technique [74,75,76]. The remaining challenges and potential of multifrequency AFM for property mapping have attracted researchers to develop new machine learning and control algorithms. In biomedical studies, the multifrequency approach has been used to measure viscoelastic and rate-sensitive indentation properties of living cells [77], lipid membrane mechanical properties [78], and biomolecules [79].
Adhesion is another important mechanical property to be characterized, especially in biomedical applications. Since adhesion plays a major role during the interaction between soft cell membranes, accurately characterizing this phenomenon with an AFM can be very helpful. In its simplest form, adhesion information can be extracted from the retraction portion of the force-distance curve before the cantilever snaps out of contact from the sample surface. A recent development called the ringing mode AFM takes a step further to analyze the residual oscillation after the probe-sample detachment. This mode allows quantification of the complex adhesion phenomenon with a total of eight parameters, including the restored adhesion, adhesion height, zero-force height, disconnection height, pull-off neck size, disconnection distance, disconnection energy loss, and dynamic creep phase shift. As a relatively new imaging mode, the ringing mode has been used in mechanobiology studies to investigate multiparameter adhesion properties and create a compositional map of cells and tissues using their different properties [80].
Measuring interactions between biomolecules and cells is another important capability. Instead of using the tip-sample interaction, the probe tip can be functionalized with target biomolecules or cells to interact with the biomedical sample. Using an AFM, the Single-Cell Force Spectroscopy (SCFS) or Single-Molecule Force Spectroscopy (SMFS) modes can be utilized to measure interactions and binding forces between molecules or cells. In these modes, the probe tip or a tip-less cantilever can be functionalized with a specific molecule or a cell. By pressing the functionalized probe onto target objects, the interaction force can be quantified with the cantilever deflection measurement. In biomedical applications, the binding force and energy of biomolecules (e.g., protein) can be measured using this method to understand the nanoscopic interaction between cells such as kidney cells [81], red blood cells [82], cancer cell identification [83] and probing native membrane proteins [84]. Such measurements can also be conducted with optical or magnetic tweezers, which offers fewer imaging modalities but easier cell manipulation capability than conventional AFM tip functionalization [85]. However, with the development of FluidFM technology, to be discussed later, AFM can also pick up cells using microfluidic techniques to conduct force spectroscopy [86], making the AFM a more versatile tool for such applications.
6. AFM Molecular Species Characterization
Molecular chemical species identification is typically conducted using spectroscopy techniques. Spectroscopy technology utilizes the interaction between material and electromagnetic radiation at various frequencies. By collecting the information of input radiation signal for the source and output radiation signal after reaction with the sample, a spectrum plot of the signal of interest can be produced. As different materials or chemical bonds can react differently to radiation at distinct wavelength, spectroscopy are widely used to identify the presence of certain elements and bonds. Raman spectroscopy and Infrared Spectroscopy are two main types of spectroscopy methods. Raman spectroscopy utilize incident light to excite molecules that emits light in a different wavelength. On the other hand, infrared spectroscopy is relies on the sample absorption of infrared light.
The infrared regime is an extremely important spectrum range of electromagnetic waves. The corresponding energy scale ( 50 meV to 1 eV) coincides with many physical processes that happen in solid materials and molecules, such as the free electron conductivity in metals, interband transitions in narrow bandgap semiconductors, lattice phonon vibrations in crystals, and vibration modes in molecules. The most popular spectroscopy tools in the infrared spectrum is the Fourier Transformed Infrared Spectroscopy. Utilizing a broadband laser source and a Michelson interferometer setup to collect experimental data over a wide spectral range as opposed to dispersive spectrometers that collects data at a very narrow band gap. Being able to obtain microscopy and spectroscopy information on materials in the infrared spectrum range can lead to numerous scientific and technological applications such as molecular spectroscopy, thermal imaging, material analysis and biomedical imaging. The typical spectral resolution of such instrument is 0.50.5 cm−1−1 while resolution as high as 0.0010.001 cm−1−1 has also been achieved before [87]. While the high-resolution spectrum information is obtained with FTIR, its spatial resolution remains limited due to the beam spot size. The spatial resolution for contrast between various material is typically on the order of several microns.
6.1. Tip-Enhanced Scanning Near-Field Optical Microscopy
Scanning Near-field Optical Microscopy (SNOM) is used to overcome the far field spatial resolution limit of beam spot by the Rayleigh criteria. Making use of evanescent waves in the near-field, higher spatial resolution images can be obtained with AFMs operated either with or without a probe tip aperture. In the aperture mode, the light emitted and collected is confined in an aperture on the probe tip with size smaller than the wavelength for high spatial resolution spectrum information collection. In aperture free modes, it is important to distinguish the near-field target signals from the far-field noise signals. This is relatively easy for Raman spectroscopy since its excitation and response wavelengths are different. For the infrared spectrum, dithering signal from tapping mode AFM probe tip is utilized to modulate the near-field signal with sinusoidal waveforms, which helps to extract the near-field signal using a lock-in amplifier. When operating at a single location, the spatial resolution of scanning probe enhanced spectroscopy techniques is significantly improved.
It is worth to note that SNOM imaging using infrared wavelength is in principle different from AFM-IR. Although both techniques make use of the difference in absorption spectrum of the material, AFM-IR relies on the heating effect of the absorbed laser to induce mechanical expansion of the material.
To create a map for density of specific elements or bonds, the spectrum magnitude or phase at the corresponding characteristic wavelength in the spectrum can be extracted to form a single point of the map. By scanning the incident light spot over the sample surface, an intensity plot can be created to form a density map [88,89]. For more demanding applications where the spectrum is desired at each spatial location, hyper-pixels can be collected for further analysis.
To enable SNOM capabilities, optical components need to be coupled into the AFM system. The modification to the AFM system is relatively small but a relatively large area for access to the probe and sample is desired. For custom designs, commercial AFMs with a relatively large opening for light coupling is preferred as a baseline system for topography imaging (e.g., Bruker Innova). Light path for the laser source and corresponding detectors can be coupled into the system to extract the desired signal. As the metal-coated AFM probe tip enhances the near-field signal, its dimension should be comparable to the wavelength of the incident laser. The scattering type SNOM incident laser typically has an angle of 30 degrees with respect to the in-plane sample surface to have a large projected area on the sample without being blocked significantly by the cantilever. Moreover, a smaller focused spot of the laser is desirable to concentrate the energy to the probe tip for improved signal to noise ratio. To realize this, laser beam with good collimation and large beam waist diameter should be used before it is focused to the probe tip using a lens or a parabolic mirror, which is typically achieved using optical beam expanders.
6.2. AFM Molecular Spectroscopy Biomedical Applications
Identifying molecular species of a biomedical samples is another important capability for advanced studies. Optical spectroscopy techniques can be integrated with AFM systems to realize this desired capability based on different spectrums of chemical bonds. In this case, the AFM tip helps to achieve super-resolution down to tens of nanometers [90] for the optical signal by making use of near-field optics, giving rise to the Scanning Near-field Optical Microscopy (SNOM). As the AFM keeps track of the sample topography, the optical signal is collected simultaneously. In its early stage of development, a coaxial scanning setup is utilized with an aperture through the cantilever probe tip. The laser beam is confined in the channel and the laser reflected or transmitted through a relatively thin sample is captured. In this setup, the near-field signal spatial resolution depends on the size of the aperture. As an alternative, a scattering-type SNOM has been developed where no aperture is needed on the probe tip. In scattering-type SNOM, the laser beam is focused on the tip-sample interaction point and the cantilever probe operates in tapping mode at resonance, which injects a dithering signal that modulates the near-field component of the laser. The near-field signal can be extracted from the far-field using a lock-in amplifier from the scattered reflected light. Due to the non-linear near-field intensity to probe-sample separation distance relation, the lock-in frequency can be set to integer multiples of the tapping dithering signal for an improved signal-to-noise ratio.
Depending on the chemical species to be identified, different types of spectroscopy techniques can be utilized. For example, Tip Enhanced Raman Spectroscopy (TERS) and nanoscale Fourier Transformation Infrared Spectroscopy (nano-FTIR) can be used to identify chemical species from the spectrum with a high spatial resolution. Some materials can also generate heat-induced force with light absorption, giving rise to another technique called photo-induced force microscopy. Depending on the underlining physical phenomenon, different imaging modes can be selected to identify the chemical species.
For biomedical applications, revealing chemical species can help to review hidden information previously unobservable through topography images. As an example, a recent study investigates the sliding dislocation of collagen fibrils, whose arrangement defects can play an important role in many common diseases such as bone fracture and fibrosis [91]. Using the scattering-type SNOM techniques as shown in Figure 6, two distinct collagen fibril arrangements are reviewed, which helps to establish a deeper understanding of collagen-related diseases. It is worth noting that the phase image from tapping mode operation also reveals material mechanical property contrast that to some extent matches with the SNOM image, which further confirms the existence of different material structures.

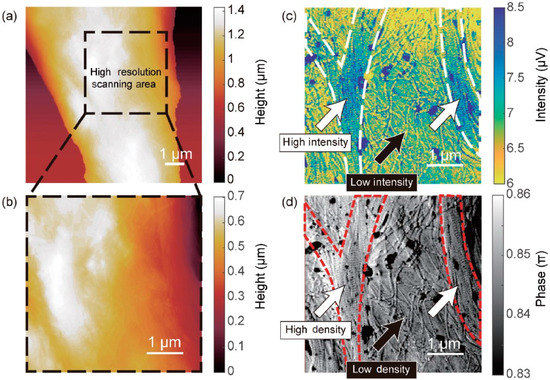

Figure 6. Scattering type SNOM image of collagen fibrils on a nerve section surface: (a,b) topography image of a section of the collagen fibrils, (c) third harmonic amplitude image at 1100 cm−1−1 with labels of the high-density area, (d) force phase image of the collagen fibrils (adapted with permission from [91], copyright 2021 Springer Nature).
In fundamental biological research, scattering-type near-field techniques have been used widely to study protein [92,93], cells [94], phospholipid bilayers [95], virus [96], and membrane [97]. For medical applications, SNOM has been used for human hair sample study [98] and cancer cell detection [99]. As a new powerful technique with hype-pixel spectrum at each location, data-driven algorithms could be a powerful technique to uncover hidden information from a large amount of data. Researchers have started to create datasets to enable the training of algorithms such as the dataset for bacterial cells [100]. In addition to infrared s-SNOM, AFM-IR technique has also been used in biomedical applications. As an example, label-free detection of biotoxins have been realized with PiFM, a technique beloning to the AFM-IR category as discussed previously [101]. The material property mapping technique can also be combined with other techniques, such as fluorescence microscopy [102] and Raman imaging [96], for in-situ correlative microscopy [103] to reveal more sample details.
“
